Four-Armed Little Dragonfly 4-in-1
Four RGBWAU heads with laser and strobe in a compact 100 W body.
- 100 W
- 21 DMX channels
- AC 95–245 V / 50 Hz
- IP20
A 100 W four-armed effect light with 4 × 15 W RGBWAU four-in-one heads, red and green lasers, two 10 W strobe LEDs and 21 DMX channels.
- Rated power
- 100 W
- Light source
- 4 × 15 W 5050 RGBWAU four-in-one LEDs, 2 × 10 W strobe LEDs, 50 mW red laser, 50 mW green laser
- DMX channels
- 21
- Control
- DMX512 (21 ch), master/slave, auto, sound, remote
- Dimensions
- 27 × 11 × 23 cm
- Net weight
- 1.97 kg (gross 2.5 kg)

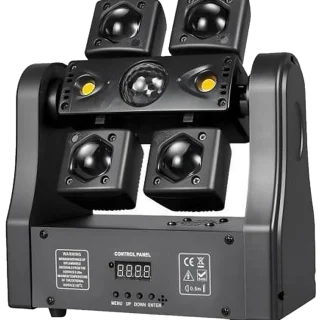

The Four-Armed Little Dragonfly is a 100 W effect fixture built around four 15 W RGBWAU four-in-one heads, with red and green lasers in the centre and two 10 W strobe LEDs.
Each of the four arms has its own DMX channel and the head rotates through 0–360°, so the fixture can open into a fan or close into a beam. Twenty-one DMX channels cover colour, strobe, lasers, a central magic ball and LED macro effects, and a remote control is included for standalone use.
At 27 × 11 × 23 cm and 2.5 kg gross, it is one of the most compact fixtures in the range. It ships eight pieces per carton at 20.7 kg carton weight.
What makes it different
- Four 15 W RGBWAU four-in-one LED heads.
- Red and green lasers plus two 10 W strobe LEDs.
- 0–360° head rotation with four arm channels.
- 21 DMX channels; DMX512, master/slave, auto, sound and remote.
- 0–100% ultra-smooth dimming and 20 Hz flicker.
- 3-pin XLR control interface.
- IP20 protection rating.
- 27 × 11 × 23 cm, 2.5 kg gross weight.
Full specifications
| Operating voltage | AC 95–245 V / 50 Hz |
|---|---|
| Rated power | 100 W |
| Light source | 4 × 15 W 5050 RGBWAU four-in-one LEDs, 2 × 10 W strobe LEDs |
| Lasers | 50 mW red, 50 mW green |
| Control | DMX512 (21 channels), master/slave, auto, sound, remote |
| Dimming | 0–100% ultra-smooth |
| Strobe | 20 times per second |
| Control interface | 3-pin XLR (XLR-3P) |
| Protection rating | IP20 |
| Dimensions | 27 × 11 × 23 cm |
| Inner box | 28 × 16 × 31.5 cm |
| Carton | 59 × 35 × 67 cm, 8 pcs per carton |
| Net weight | 1.97 kg |
| Gross weight | 2.5 kg |
| Carton weight | 20.7 kg |
DMX512 channel map
Reproduced from the fixture user manual. Values are DMX 0–255 unless a range is shown.
| CH | Function | DMX value | Description |
|---|---|---|---|
| 1 | Y axis | 0–255 | 0–360° rotation |
| 2 | Y-axis speed | 0–255 | Speed from fast to slow |
| 3 | Arm 1 | 0–255 | Arm motor 1 |
| 4 | Arm 2 | 0–255 | Arm motor 2 |
| 5 | Arm 3 | 0–255 | Arm motor 3 |
| 6 | Arm 4 | 0–255 | Arm motor 4 |
| 7 | Master dimming | 0–255 | Linear dimming from dark to bright |
| 8 | Strobe | 0–9 no function, 10–255 | Strobe from slow to fast |
| 9 | Beam red | 0–255 | Red linear dimming 0–100% |
| 10 | Beam green | 0–255 | Green linear dimming 0–100% |
| 11 | Beam blue | 0–255 | Blue linear dimming 0–100% |
| 12 | Beam white | 0–255 | White linear dimming 0–100% |
| 13 | Magic ball red | 0–255 | Red linear dimming 0–100% |
| 14 | Magic ball green | 0–255 | Green linear dimming 0–100% |
| 15 | Magic ball blue | 0–255 | Blue linear dimming 0–100% |
| 16 | Magic ball white | 0–255 | White linear dimming 0–100% |
| 17 | Red laser | 0–255 | Red laser linear dimming 0–100% |
| 18 | Green laser | 0–255 | Green laser linear dimming 0–100% |
| 19 | White strobe | 0–9 no function, 10–255 | White strobe 1–20 Hz |
| 20 | LED macro effect | 0–1 none, 2–127 gradient slow–fast, 128–255 | Transition effect |
| 21 | Macro control | 0–50 none, 51–150 random auto, 151–255 | Sound-controlled auto |

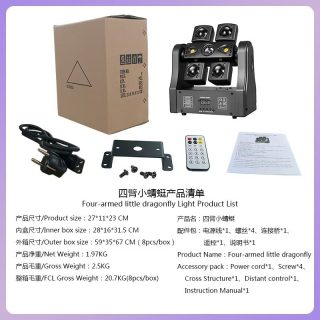

Packing, delivery and documentation
Inner box 28 × 16 × 31.5 cm; carton 59 × 35 × 67 cm, 8 pcs per carton, 20.7 kg carton weight
In the box
- Power cord × 1
- Screws × 4
- Cross bracket × 1
- Remote control × 1
- Instruction manual × 1
