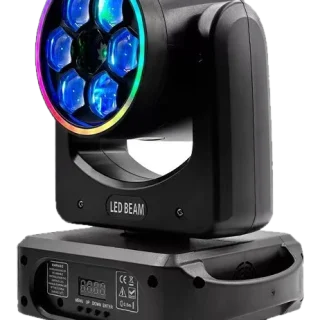

Moving-head LED effect light with six honey-eye lenses lit in blue
Bee Eye & Laser Effects Stage & effect

Six Honey Eye Lasers + LED Light Strips

Six honey-eye lenses, a green laser and flexible LED strips in a 17-channel moving head.

  • 100 W
  • 17 DMX channels
  • AC 95–245 V / 50 Hz

A 100 W moving-head effect with six CREE four-in-one honey-eye lenses, a 100 mW green laser and 24 flexible LED strip segments over 17 DMX channels.

Request a quote Download manual
Rated power
100 W
Light source
6 × CREE four-in-one LEDs, 100 mW green laser, 24 × 0.2 W flexible LED strips
DMX channels
17
Control
DMX512 (17 ch), master/slave, auto, sound
Dimensions
30.5 × 23 × 17.5 cm
Net weight
3.15 kg

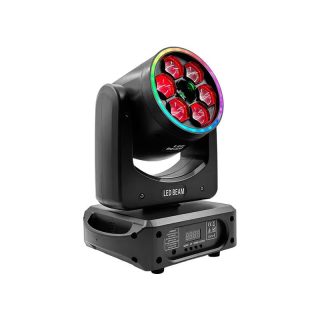

The Six Honey Eye is a moving-head effect with six four-in-one honey-eye lenses, a 100 mW green laser and 24 flexible LED strip segments around the lens plate.

It runs on 17 DMX channels and also supports master/slave, auto and sound operation. The strip segments add outline effects that can be selected through the strip macro channel, while the honey-eye motor can rotate continuously, reverse or alternate direction.

With a 100 W rating, aluminium heat dissipation and fan cooling, it is a compact fixture for clubs, bars and smaller stages. It ships four pieces per carton at 3.15 kg net per fixture.

What makes it different

  • Six CREE four-in-one honey-eye lenses.
  • 100 mW green laser.
  • 24 flexible LED strip segments with 18 macro effects.
  • 17 DMX channels; DMX512, master/slave, auto and sound.
  • 0–100% dimming and 20 Hz strobe.
  • Aluminium heat dissipation with fan cooling.
  • 30.5 × 23 × 17.5 cm, 3.15 kg net.
  • Four pieces per carton.

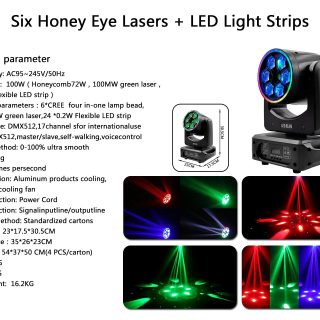

Full specifications

Operating voltage AC 95–245 V / 50 Hz
Rated power 100 W (honeycomb 72 W, laser 100 mW, LED strip 5 W)
Light source 6 × CREE four-in-one LED beads
Laser 100 mW green
LED strips 24 × 0.2 W flexible LED strip segments
Control DMX512 (17 channels), master/slave, auto, sound
Dimming 0–100% ultra-smooth
Strobe 20 times per second
Cooling Aluminium heat dissipation with fan cooling
Power connection Power cable in
Signal connection Signal in / out

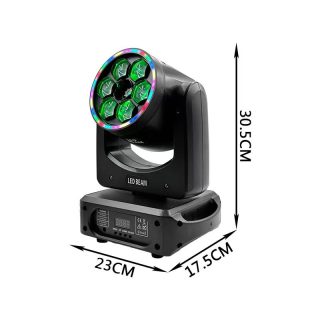

Dimensions 30.5 × 23 × 17.5 cm
Net weight 3.15 kg
Gross weight 3.8 kg
Packing Inner box 35 × 26 × 23 cm; carton 54 × 37 × 54 cm, 4 pcs per carton, carton weight 16.2 kg

DMX512 channel map

Reproduced from the fixture user manual. Values are DMX 0–255 unless a range is shown.

CH Function DMX value Description
1 X axle 0–255 0–540° rotation
2 X-axis fine 0–255 Fine pan adjustment
3 Y axle 0–255 0–180° rotation
4 Y-axis fine 0–255 Fine tilt adjustment
5 XY speed 0–255 Speed from fast to slow
6 Total dimming 0–255 Linear dimming from dark to bright
7 Strobe 0–9 no function, 10–255 Strobe from slow to fast
8 Red 0–255 Red dimming 0–100%
9 Green 0–255 Green dimming 0–100%
10 Blue 0–255 Blue dimming 0–100%
11 White 0–255 White dimming 0–100%
12 Green laser 0–255 Green laser dimming 0–100%
13 Bee-eye motor 0–59 0–360°, 60–119 forward, 120–179 reverse, 180–255 Alternating rotation from slow to fast
14 Macro 0–4 none, 5–55 colourful jump, 56–106 gradually bright, 107–157 quiet change, 158–208 gradually destroyed, 210–255 flash Colour macro effects
15 LED strip macro 0–7 none, 8–18 red, 19–29 green, 30–40 blue, 41–51 red+green, 52–62 red+blue, 63–73 green+blue, 74–79 RGB, 80–255 18 strip effects
16 Macro control 0–50 channels 1–15 valid, 51–150 auto, 151–255 Sound-controlled auto
17 Reset 0–241 no function, 242–255 Fixture reset (valid for 5 seconds)

Packing, delivery and documentation

Inner box 35 × 26 × 23 cm; carton 54 × 37 × 54 cm, 4 pcs, 16.2 kg carton weight

In the box

  • Fixture × 1
  • Power cable × 1
  • Bracket / handle × 2
  • Hex screw × 2
  • User manual × 1

English user manual (PDF)
