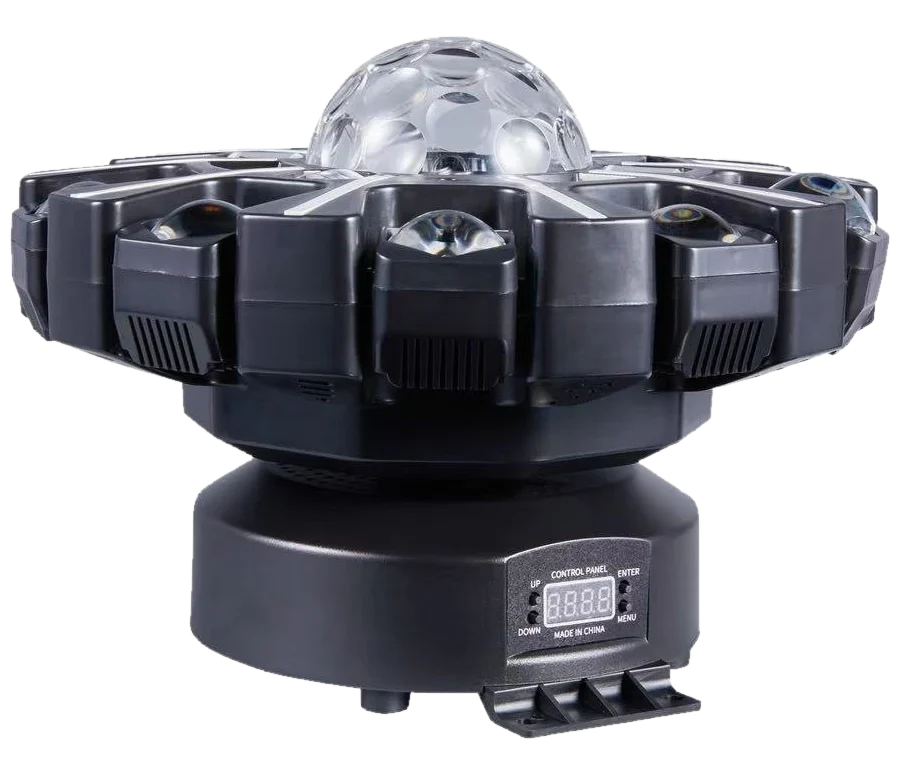

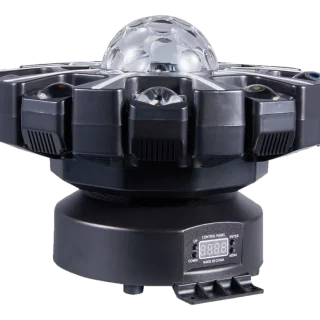

Six-arm bee-eye LED effect fixture with a clear dome centre
Bee Eye & Laser Effects Stage & effect

War Shadow Six Arm Bee Eye

Six movable arms around a rotating bee-eye array, 200 W and 26 channels.

  • 200 W
  • 26 DMX channels
  • AC 95–245 V / 50 Hz

A 200 W six-arm bee-eye fixture with 10 × CREE 10 W RGBW LEDs, 23 colour lights, red and green lasers and dual white/golden strobe over 26 DMX channels.

Request a quote Ask a question
Rated power
200 W
Light source
10 × CREE 10 W RGBW, 23 colour lights, 2 × 10 W white strobe, 2 × 10 W golden strobe, 100 mW red laser, 50 mW green laser
DMX channels
26
Control
DMX512 (26 ch), master/slave, auto, sound

The War Shadow Six Arm Bee Eye puts a rotating bee-eye array at the centre of six individually controlled arms, with 10 × CREE 10 W RGBW LEDs and 23 additional colour lights across the body.

The 26-channel map covers the X axis (0–540°), the bee-eye rotation (0–180° with forward and reverse spin), six beam channels, RGBW colour, red and green lasers, two white and two golden strobe LEDs, and the LED strip macros.

At 200 W, it is the larger of the six-arm models, intended for venues and rental companies that want the bee-eye look with more light output.

What makes it different

  • Rotating bee-eye array with 10 × CREE 10 W RGBW LEDs.
  • 23 additional colour lights across the fixture.
  • 100 mW red and 50 mW green lasers.
  • 2 × 10 W white and 2 × 10 W golden strobe LEDs.
  • 0–540° X-axis rotation and 0–180° bee-eye rotation.
  • Six beam channels with individual movement.
  • DMX512 26 channels, master/slave, auto and sound.
  • 0–100% dimming and 20 Hz strobe.

Full specifications

Operating voltage AC 95–245 V / 50 Hz
Rated power 200 W
Light source 10 × CREE 10 W RGBW LEDs, 23 colour lights
Lasers 100 mW red, 50 mW green
Strobe LEDs 2 × 10 W white, 2 × 10 W golden
Control DMX512 (26 channels), master/slave, auto, sound
Dimming 0–100% ultra-smooth
Strobe 20 times per second
Pan range 0–540°
Bee-eye rotation 0–180° with forward and reverse spin

DMX512 channel map

Reproduced from the fixture user manual. Values are DMX 0–255 unless a range is shown.

CH Function DMX value Description
1 X axle 0–255 0–540° rotation
2 X-axis speed 0–255 Speed from fast to slow
3 Bee-eye spin 0–127 0–180°, 128–191 forward, 192–255 reverse Bee-eye rotation
4 Beam 1 0–255 0–180° rotation
5 Beam 2 0–255 0–180° rotation
6 Beam 3 0–255 0–180° rotation
7 Beam 4 0–255 0–180° rotation
8 Beam 5 0–255 0–180° rotation
9 Beam 6 0–255 0–180° rotation
10 Total dimming 0–255 Linear dimming from dark to bright
11 Strobe 0–9 no function, 10–255 Bee-eye and beam strobe from slow to fast
12 Bee-eye red 0–255 Red linear dimming 0–100%
13 Bee-eye green 0–255 Green linear dimming 0–100%
14 Bee-eye blue 0–255 Blue linear dimming 0–100%
15 Bee-eye white 0–255 White linear dimming 0–100%
16 Beam red 0–255 Red linear dimming 0–100%
17 Beam green 0–255 Green linear dimming 0–100%
18 Beam blue 0–255 Blue linear dimming 0–100%
19 Beam white 0–255 White linear dimming 0–100%
20 Red laser 0–255 Red laser linear dimming 0–100%
21 Green laser 0–255 Green laser linear dimming 0–100%
22 White strobe 0–255 Strobe from slow to fast
23 Golden strobe 0–255 Golden strobe from slow to fast
24 Light strip macro 0–12 none, 13–21 red, 22–30 green, 31–39 blue, 40–48 yellow, 49–57 purple, 58–66 cyan, 67–75 white, 76–255 31 flowing effects
25 Light strip speed 0–255 Speed from slow to fast
26 Macro control 0–50 none, 51–150 random, 151–250 sound auto, 251–255 3-second reset
