Three-Wing Lightsaber
Three LED wings, 21 monochrome beads and four light sources.
- 100 W
- 19 / 40 DMX channels
- AC 95–245 V / 50 Hz
A 100 W three-wing effect with 21 × 3 W LEDs, red, green and blue lasers, a 30 W golden strobe and 19/40 DMX channels.
- Rated power
- 100 W
- Light source
- 21 × 3 W monochrome LEDs, 100 mW red laser, 50 mW green laser, 100 mW blue laser, 1 × 30 W golden strobe, 3 sets of 12 and 3 sets of 18 LED strips
- DMX channels
- 19 / 40
- Control
- DMX512 (19/40 ch), master/slave, auto, sound
- Dimensions
- 37.5 × 37.5 × 21 cm
- Net weight
- 3.7 kg

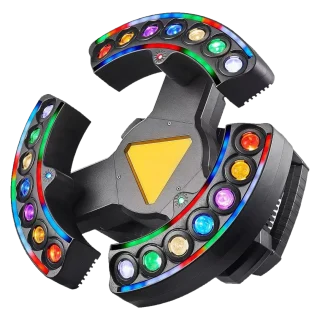

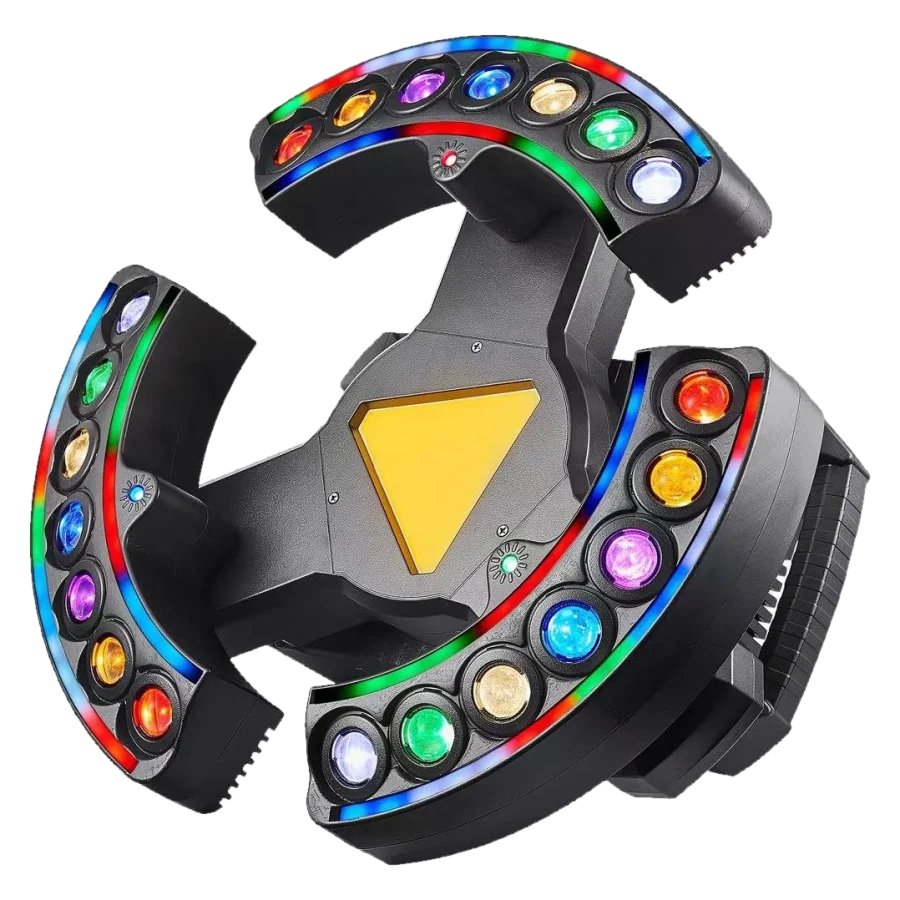

The Three-Wing Lightsaber spreads 21 × 3 W monochrome LEDs across three wings, with laser diodes in red, green and blue plus a 30 W golden strobe at the centre of the fixture.
Iridescent soft LED strips run along the wings — three sets of 12 and three sets of 18 — so the fixture can work as a beam effect and as a colour wash at the same time. DMX512 control is available in 19- or 40-channel mode, alongside master/slave, auto and sound operation.
At 100 W and 3.7 kg net, it is a compact unit for stages and venues that need a wide effect without a large rig.
What makes it different
- 21 × 3 W monochrome LEDs across three wings.
- 100 mW red, 50 mW green and 100 mW blue lasers.
- 1 × 30 W golden strobe.
- 3 sets of 12 and 3 sets of 18 iridescent soft LED strips.
- DMX512 in 19- or 40-channel mode.
- Master/slave, auto and sound modes.
- 0–100% smooth dimming and 20 Hz strobe.
- 37.5 × 37.5 × 21 cm and 3.7 kg net.
Full specifications
| Operating voltage | AC 95–245 V / 50 Hz |
|---|---|
| Rated power | 100 W |
| Light source | 21 × 3 W monochrome LEDs |
| Lasers | 100 mW red, 50 mW green, 100 mW blue |
| Golden strobe | 1 × 30 W |
| LED strips | 3 sets of 12 and 3 sets of 18 iridescent soft LED strips |
| Control | DMX512 (19 / 40 channels), master/slave, self-propelled, sound |
| Dimming | 0–100% smooth |
| Strobe | 20 times per second |
| Dimensions | 37.5 × 37.5 × 21 cm |
| Net weight | 3.7 kg |
