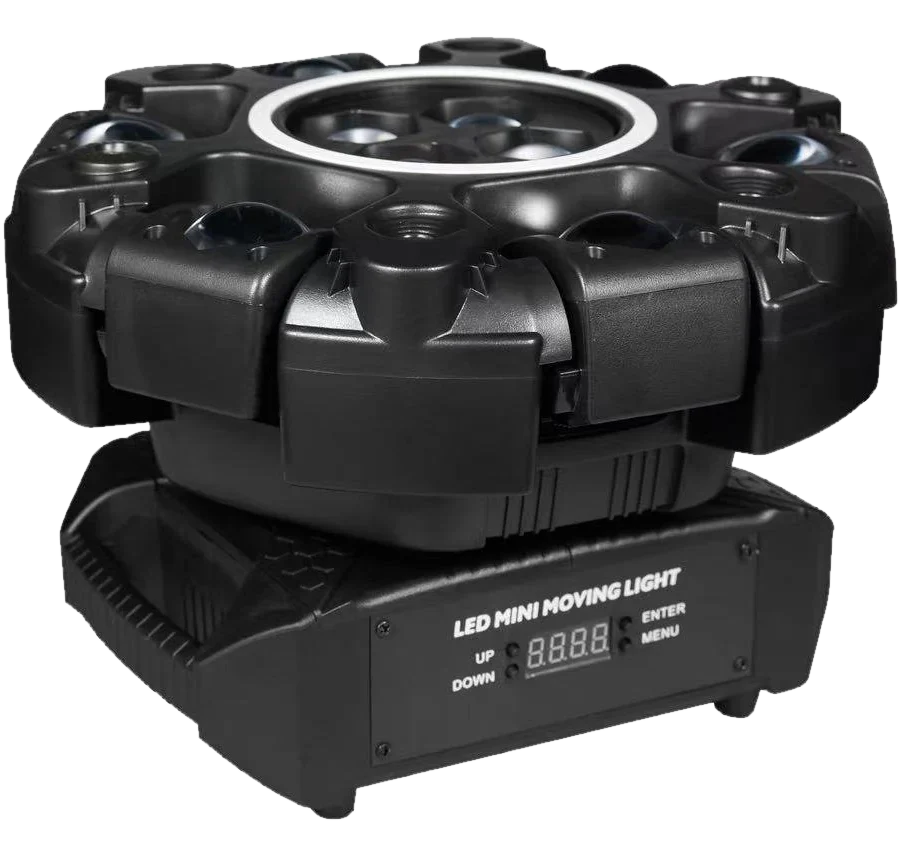

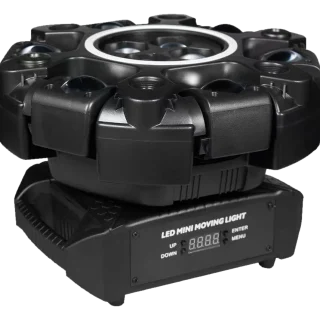

Six-arm LED effect fixture with a centre ring light and control display
Multi-Arm Rotating Lights Stage & effect

War Shadow Six Arms 2-in-1

Six rotating beams, pattern LEDs, lasers and 72 LED strips.

  • 120 W
  • 26 DMX channels
  • AC 95–245 V / 50 Hz

A 120 W six-arm effect with 7 × CREE 10 W RGBW LEDs, 33 W pattern LEDs, red and green lasers and 72 multicolour LED strips over 26 DMX channels.

Request a quote Ask a question
Rated power
120 W
Light source
7 × CREE 10 W RGBW, 33 W pattern LEDs, 72 multicolour LED strips, 100 mW red laser, 50 mW green laser
DMX channels
26
Control
DMX512 (26 ch), master/slave, auto, sound

The War Shadow Six Arms 2-in-1 combines six rotating beams, a rotating bee-eye array and a pattern LED layer in one 120 W fixture, with red and green lasers and white and golden strobe LEDs over the top.

The 26-channel map gives each beam 0–180° of movement, adds a 0–540° X axis, and controls 72 multicolour LED strips with colour macros, flow effects and speed. The 33 W pattern LEDs and the central magic ball provide the second and third layers of the look.

Master/slave, auto and sound modes make the fixture usable without a console, while the full DMX map keeps it predictable on a larger rig.

What makes it different

  • Six rotating beams with 0–180° movement on separate channels.
  • 7 × CREE 10 W RGBW LEDs and 33 W pattern LEDs.
  • 100 mW red and 50 mW green lasers.
  • White and golden strobe LEDs.
  • 72 multicolour LED strips with colour macros and flow effects.
  • 0–540° X-axis rotation.
  • DMX512 26 channels, master/slave, auto and sound.
  • 0–100% dimming and 20 Hz strobe.

Full specifications

Operating voltage AC 95–245 V / 50 Hz
Rated power 120 W
Light source 7 × CREE 10 W RGBW LEDs, 33 W pattern LEDs, white and golden strobe LEDs, 72 multicolour LED strips
Lasers 100 mW red, 50 mW green
Control DMX512 (26 channels), master/slave, auto, sound
Dimming 0–100% ultra-smooth
Strobe 20 frames per second
Pan range 0–540°
Arm rotation 0–180° per arm
Bee-eye rotation 0–180° with forward and reverse spin

DMX512 channel map

Reproduced from the fixture user manual. Values are DMX 0–255 unless a range is shown.

CH Function DMX value Description
1 X axle 0–255 0–540° rotation
2 X-axis speed 0–255 Speed from fast to slow
3 Rotating bee eye 0–127 0–180°, 128–191 forward, 192–255 reverse Bee-eye rotation
4 Beam 1 0–255 0–180° rotation
5 Beam 2 0–255 0–180° rotation
6 Beam 3 0–255 0–180° rotation
7 Beam 4 0–255 0–180° rotation
8 Beam 5 0–255 0–180° rotation
9 Beam 6 0–255 0–180° rotation
10 Total dimming 0–255 Linear dimming from dark to bright
11 Strobe 0–9 no function, 10–255 Bee-eye and beam strobe from slow to fast
12 Pattern LED 0–255 Pattern LED linear dimming 0–100%
13 Magic ball red 0–255 Red linear dimming 0–100%
14 Magic ball green 0–255 Green linear dimming 0–100%
15 Magic ball blue 0–255 Blue linear dimming 0–100%
16 Magic ball white 0–255 White linear dimming 0–100%
17 Red beam 0–255 Red linear dimming 0–100%
18 Green beam 0–255 Green linear dimming 0–100%
19 Blue beam 0–255 Blue linear dimming 0–100%
20 White beam 0–255 White linear dimming 0–100%
21 Red laser 0–255 Red laser linear dimming 0–100%
22 Green laser 0–255 Green laser linear dimming 0–100%
23 White + golden strobe 0–255 Strobe from slow to fast
24 Light strip macro 0–13 none, 14–21 red, 22–29 green, 30–37 blue, 38–45 yellow, 46–53 purple, 54–61 cyan, 62–69 white, 70–255 31 flowing effects
25 Light strip speed 0–255 Speed from slow to fast
26 Macro control 0–50 none, 51–150 random, 151–250 sound auto, 251–255 3-second reset
