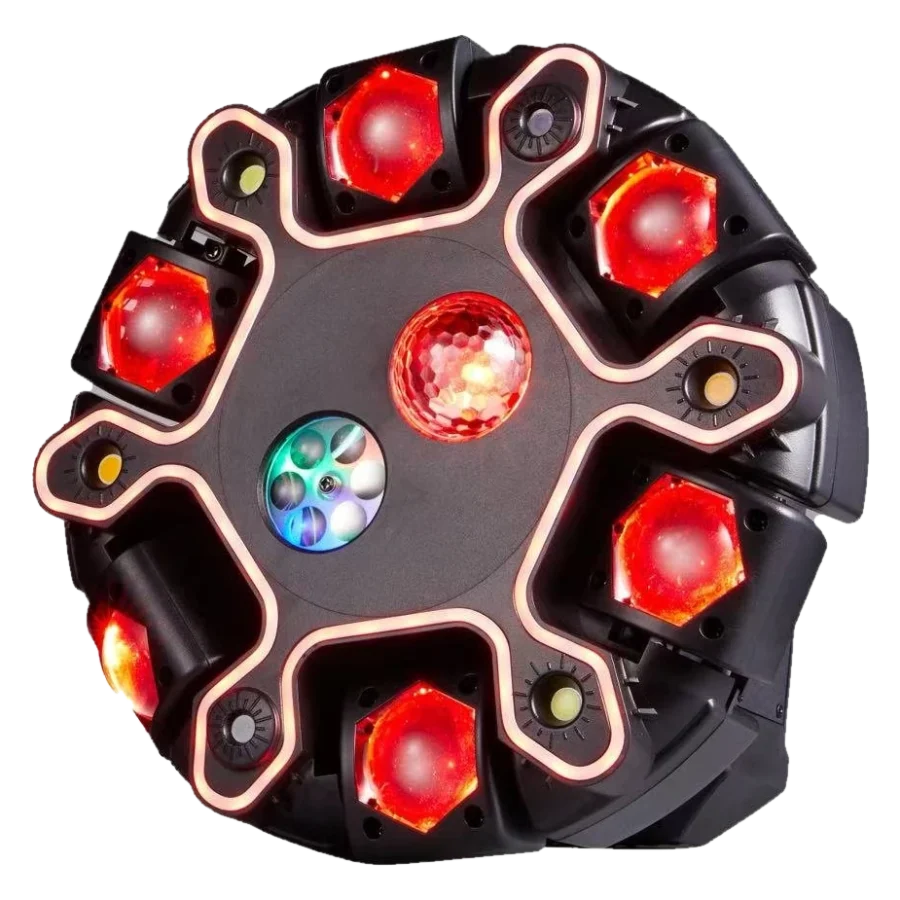

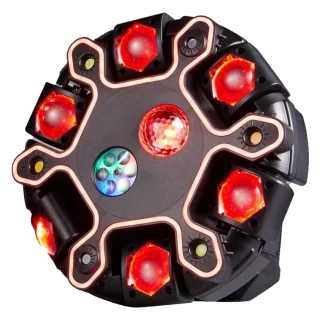

Ten-arm LED effect fixture with red arm lights and a central magic ball
Multi-Arm Rotating Lights Stage & effect

War Shadow Ten-Arm Magic Ball LED Strip Light

Ten rotating arms and a central magic ball, driven by 29 DMX channels.

  • 200 W
  • 29 DMX channels
  • AC 95–245 V / 50 Hz

A 200 W ten-arm effect fixture with 10 × 10 W RGBW LEDs, a central magic ball, red and green lasers and 10 sets of five-colour LEDs over 29 DMX channels.

Request a quote Ask a question
Rated power
200 W
Light source
10 × CREE 10 W RGBW, 8 × 3 W monochrome, 4 × 10 W golden, 10 sets of five-colour LEDs, 100 mW red laser, 50 mW green laser
DMX channels
29
Control
DMX512 (29 ch), master/slave, auto, sound

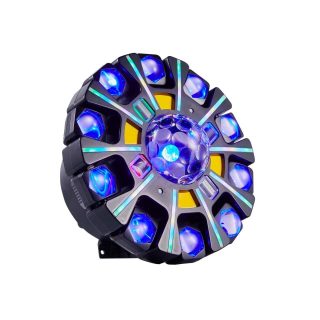

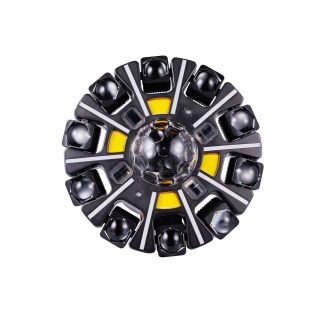

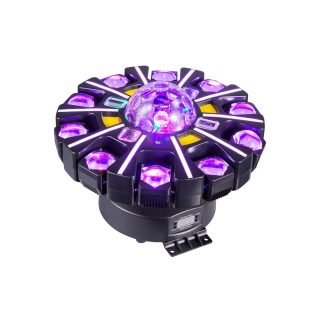

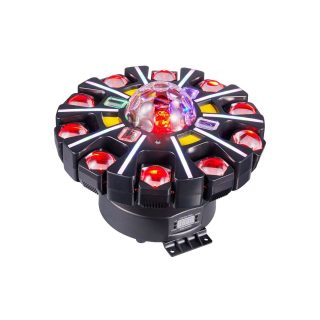

The War Shadow Ten-Arm Magic Ball puts ten rotating arms around a central magic ball, with each arm carrying its own 10 W CREE RGBW LED. Monochrome LEDs, golden LEDs and red and green lasers are layered over the beams, and LED strips outline the arms for a second level of colour and movement.

Every arm has an independent DMX channel for 0–180° rotation, so the beams can be opened into a fan, crossed into a tunnel or swept as a single group. The X axis rotates 0–540°, and the strip lighting can be coloured, flowed or driven by sound through its own macro and speed channels.

At 200 W with 29 DMX channels, the fixture is designed for venues and rental inventories that want one unit to cover width, depth and movement.

What makes it different

  • Ten independently rotating arms, each on its own DMX channel (0–180°).
  • 0–540° X-axis rotation with adjustable speed.
  • 10 × CREE 10 W RGBW LEDs plus 8 × 3 W monochrome LEDs.
  • 100 mW red and 50 mW green laser sources.
  • 4 × 10 W golden LEDs and 10 sets of five-colour LEDs.
  • LED strips around the arms with colour, flow and speed control.
  • DMX512, master/slave, auto and sound modes.
  • 0–100% smooth dimming and 20 Hz strobe.

Full specifications

Operating voltage AC 95–245 V / 50 Hz
Rated power 200 W
Light source 10 × CREE 10 W RGBW LEDs, 8 × 3 W monochrome LEDs, 4 × 10 W golden LEDs, 10 sets of five-colour LEDs
Lasers 100 mW red, 50 mW green
Control DMX512 (29 channels), master/slave, auto, sound
Dimming 0–100% ultra-smooth
Strobe 20 Hz
Pan range 0–540°
Arm rotation 0–180° per arm
LED strips Colour macros, flow effects and speed control

DMX512 channel map

Reproduced from the fixture user manual. Values are DMX 0–255 unless a range is shown.

CH Function DMX value Description
1 X axle 0–255 0–540° rotation
2 X-axis speed 0–255 Speed from fast to slow
3 Beam 1 0–255 0–180° rotation
4 Beam 2 0–255 0–180° rotation
5 Beam 3 0–255 0–180° rotation
6 Beam 4 0–255 0–180° rotation
7 Beam 5 0–255 0–180° rotation
8 Beam 6 0–255 0–180° rotation
9 Beam 7 0–255 0–180° rotation
10 Beam 8 0–255 0–180° rotation
11 Beam 9 0–255 0–180° rotation
12 Beam 10 0–255 0–180° rotation
13 Total dimming 0–255 Linear dimming from dark to bright
14 Strobe 0–9 no function, 10–255 Flashing speed from slow to fast
15 Magic ball red 0–255 Red linear dimming 0–100%
16 Magic ball green 0–255 Green linear dimming 0–100%
17 Magic ball blue 0–255 Blue linear dimming 0–100%
18 Magic ball white 0–255 White linear dimming 0–100%
19 Beam red 0–255 Red linear dimming 0–100%
20 Beam green 0–255 Green linear dimming 0–100%
21 Beam blue 0–255 Blue linear dimming 0–100%
22 Beam white 0–255 White linear dimming 0–100%
23 Line LED 0–255 Linear LED dimming 0–100%
24 Red laser 0–255 Red laser linear dimming 0–100%
25 Green laser 0–255 Green laser linear dimming 0–100%
26 Golden strobe 0–255 Golden flashing light from slow to fast
27 LED strip effects 0–13 none, 14–21 red, 22–29 green, 30–37 blue, 38–45 yellow, 46–53 purple, 54–61 cyan, 62–69 white, 70–255 31 waterfall effects
28 LED strip speed 0–255 Speed from slow to fast
29 Macro control 0–50 none, 51–150 random, 151–250 sound auto, 251–255 3-second reset
